ZEBRA POWERDRIV® (12-Point) Metric Combination Wrench (Short Type) - 10mm
- Standard: DIN 3113A/ISO 3318/7738
- Drive: Box end POWERDRIV® (12-Point)
- Material: Chromium-vanadium steel
- Surface: Chrome-plated, polished heads and ring
- Geometry: Box end angled 15°, head angle 15°

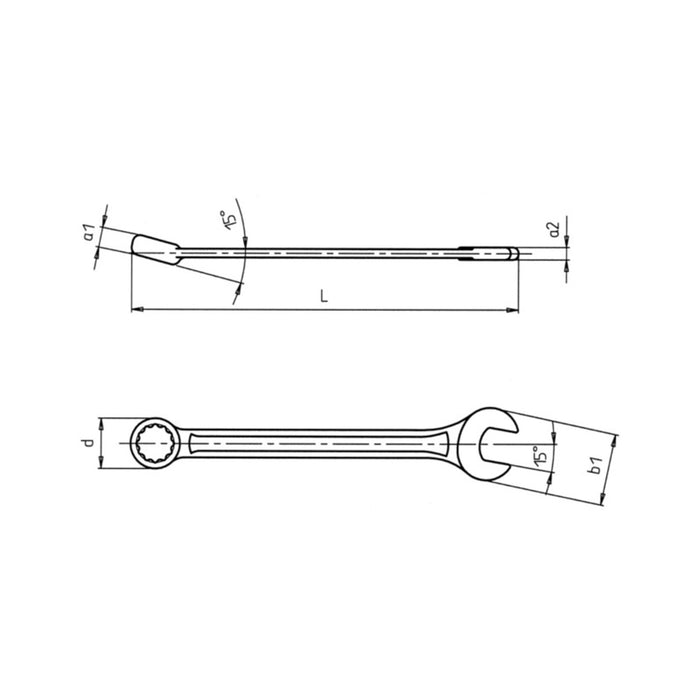

| Width across flats | 10 mm |
| Length (L) |
140 mm |
| Width of jaws (outside) (b1) | 22.5 mm |
| External diameter of ring (d) | 16.1 mm |
| Height of ring (a1) | 7.5 mm |
| Height of jaws (a2) | 4.5 mm |
