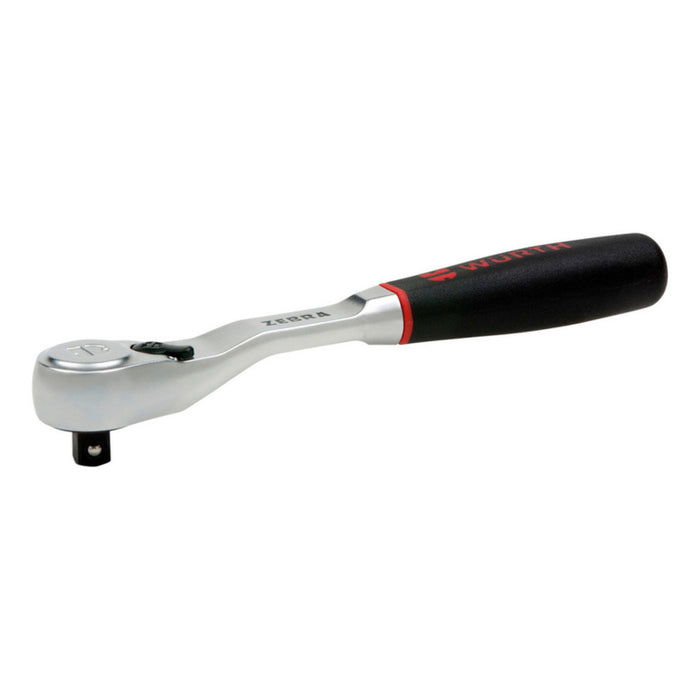

ZEBRA 3/8 Inch Lever Reversible Ratchet, Dust Protected
Dust-protected ratchet ensuring durability, even under difficult working conditions.
- Drive: 12.5 – 1/2 inch
- Standard: DIN 3122, ISO 3315
- Reversing lever for clockwise and counterclockwise rotation
- Geometry: Ratchet body with depressed center for more freedom of movement
- IP Protection Class: IP 5X
Drive Size | 3/8 Inch |
Overall Length (L1) | 177 mm |
Handle to Drive Center Length 2 (L2) |
160 mm |
Handle Length (L3) | 79 mm |
Handle Diameter/Width (D1) | 21 mm |
Head Diameter (D2) | 29 mm |
Head Thickness (B1) | 16 mm |
Head + Drive Thickness (B2) | 29 mm |
Warranty: Limited warranty. View details.
