UltraFlex Air Hose
SKU 0699991250
Original price
$158.29
-
Original price
$158.29
Original price
$158.29
$158.29
-
$158.29
Current price
$158.29

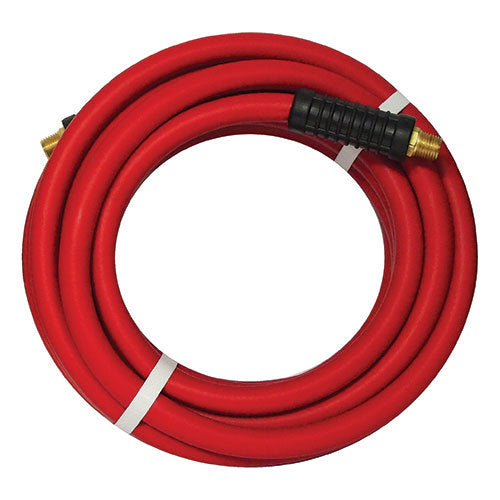

UltraFlex Air Hose 1/4 Inch x 25 Feet (1/4" Male NPT)
Durable, weather- resistant and lightweight Ultraflex Air Hoses are manufactured from a specially formulated compound of high grade PVC resin that is engineered to be tough, flexible and easy to handle. Ideal in cold weather air tool applications.
Features:
- Multi-purpose
- Excellent abrasion resistance
- Avoids permanent deformation caused by hose stress
- Medium Class B oil resistance
- Non-marking pin-pricked cover
- Silicone – free
- RoHS compliant
Applications: Ideal for pneumatic hand tool and shop air applications due to its light weight and relatively high pressure rating.
Technical Data:
|
Nominal ID |
Nominal OD |
Max. Working Pressure* (PSI) |
Approx. Wt. (hose w/o MPT fitting) |
||||
|
In |
mm |
In |
mm |
@ 70°F (20°C) |
@ 122°F (50°C) |
25 ft. |
50 ft. |
|
1/4 |
6.5 |
.500 |
12.7 |
300 |
160 |
2 lbs. |
4 lbs. |
|
3/8 |
9.5 |
.625 |
15.9 |
300 |
160 |
2.5 lbs. |
5 lbs. |
|
1/2 |
12.7 |
.781 |
19.8 |
300 |
160 |
3.75 lbs. |
7.5 lbs. |
Physical Properties:
- Individually shrink-wrapped assemblies
- Tube and Cover: High grade low temperature PVC Compound
- Reinforcement: High tensile strength polyester yarn
- Service Temperature: -40°F (-40°C) to + 150°F (+65°C)
Availability:
in stock, ready to be shipped
