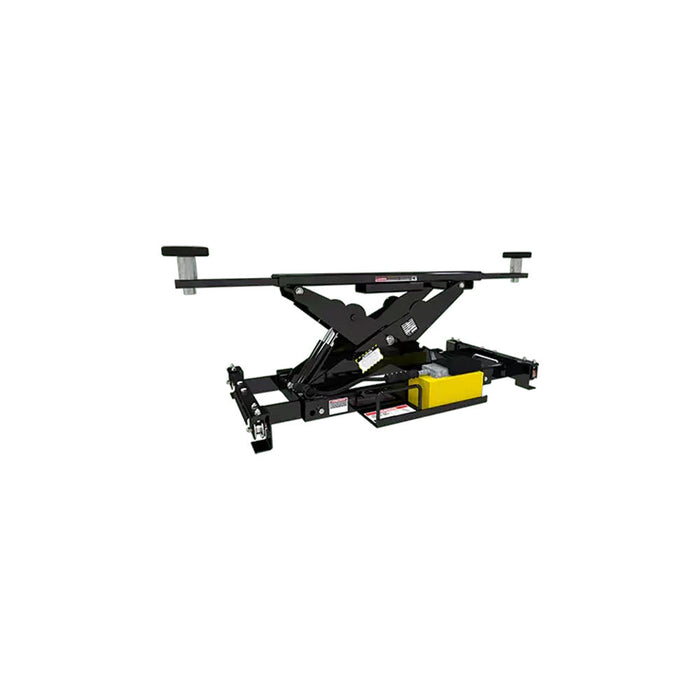

BendPak’s 9,000-lb. capacity rolling bridge jack is ideal for use on the HDS-18E four-post lift, especially if your vehicles have an unbalanced center of gravity. This jack is ideal for heavier trucks and SUVs.
With a 14,000-lb. capacity lift, you might think the RJ7W rolling bridge jack is sufficient for your vehicle. However, vehicles that max out a lift's capacity might have offset centers of gravity. In such cases, the RJ7W is not suitable to lift those vehicles. That’s why we offer the RJ9W. A heavier-duty bridge jack can save you from having to swap your perfectly fine four-post lift for a heavier-duty model.
The RJ9W rolling bridge comes standard with easy-roll wheels that fit inside the runway channels on standard four-post lift models 18,000-lbs lifting capacity or greater and provide effortless gliding along the runways for easy positioning and adjustability. BendPak rolling bridge jack rollers are made of hardened stainless-steel and zinc plated for maximum durability.
Rubber contact pads are essential lifting components. They increase rise and firmly engage your vehicle’s undercarriage lift points. The durable yet non-marring surface ensures vehicles are not scraped or damaged during rolling bridge jack or car lift operation.
The ability to stack and unstack BendPak contact pads increases the versatility of your rolling bridge jack. These adapters are also useful for lifting vehicles that may have drastically different front-and-rear suspensions. With two rolling bridge jacks employed at once, the front may need an extra adapter to ensure an even lift.
BendPak’s rolling bridge jacks include a pneumatic-hydraulic power unit that comes attached to the jack. The car lift runs off its own power unit, so there’s no “sharing” of hydraulic power between the two. An airline must be attached to the rolling bridge jack with 125 psi and 10 – 20 CFM. Easy foot pedal control is included for your safety and convenience.
With three lock positions, your rolling bridge jack can be raised to the level most comfortable for you. Find the perfect height for the perfect job as you also adjust the height of your car lift.

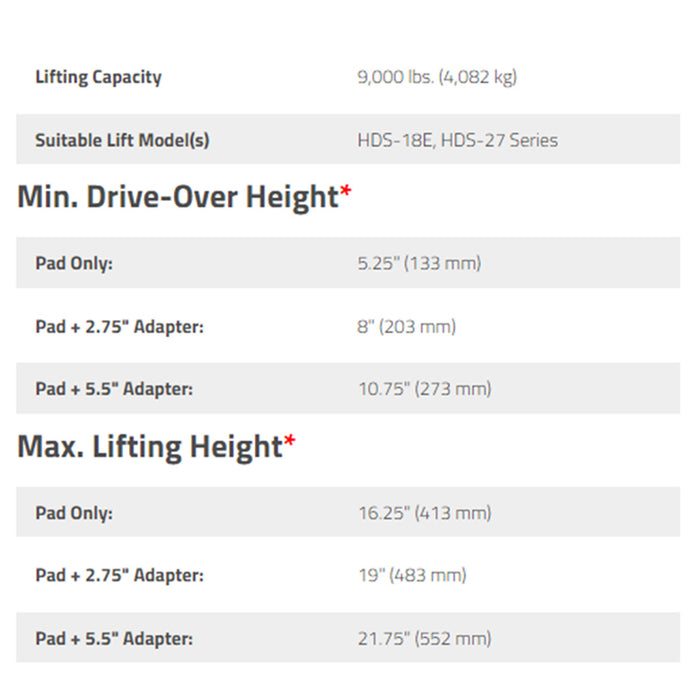

Specification:
- 9,000-lb. lifting capacity
- Easy-Roll Wheels
- Rubber contact pads
- Stackable adapters
- High-pressure hydraulic power unit
- Optional air-line kit
BENDPAK NUMBER #5175252
