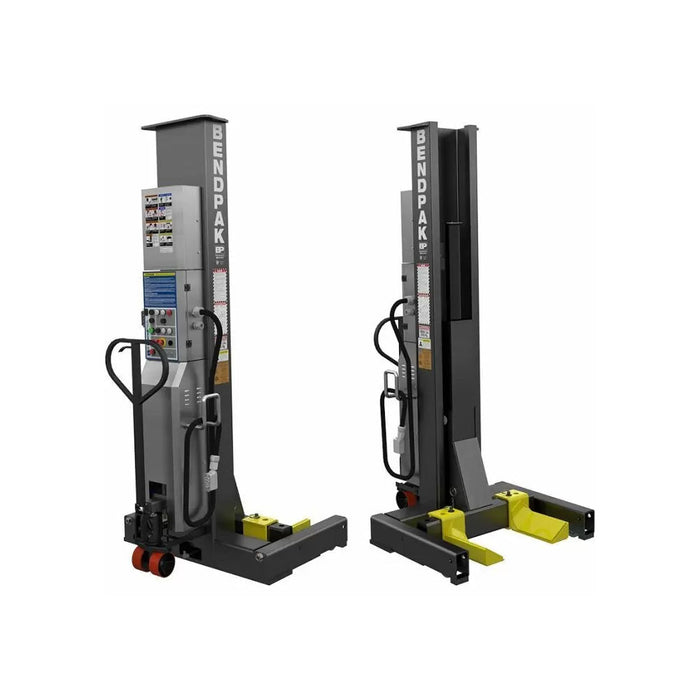

This PCL-18B mobile column lift system comes in a set of 2. When combined, the system lifts up to 36,000 lbs. A set of 2 is the perfect way to expand your lifting capabilities on vehicles with three or four axles. Sets of 4, 6 and 8 are available.
With a pair (2) of mobile column lifts, you can add to your existing fleet and expand your lifting capabilities to include larger semi-trucks and heavy-duty vehicles. A minimum of 4 mobile column lifts must be used to lift a vehicle, and heavier vehicles require 6 or 8. This 2-set is a great way to gradually upgrade into the 6 or 8-lift range, offering up to 144,000 lbs. with a full set.
Do not attempt to lift half of a vehicle (the front or back only) with only 2 mobile lifts. Vehicles must be raised on an even plane at all times.
Specification:
- HIGH VOLTAGE UNITS
- 18,000-lb. individual column capacity / 108,000-lb. maximum system capacity
- Meets or exceeds the standards prescribed by ANSI/ALI ALCTV-2011
- Two, four, or six column configurations can accommodate heavy duty trucks and light duty passenger vehicles
- 208-240V, 3-phase main power system - optional voltages available upon request
- SINGLE, PAIR or TEAM operation
- For a standard four-column set, just three 30' cables are used leaving the front or back of the lift clear of cable obstructions
- Simple operation, long service life and minimum maintenance
- Intuitive controls allow the lift to be fully programmed and controlled from any column
- Control systems feature 24-volt safety circuitry
- The PLC and main system components are standard off-the-shelf brands rather than proprietary printed circuit boards or controls, which can be very expensive to service or replace
- Smart electronics feature self-diagnostics and self-calibration functions
- Sealed and enclosed linear potentiometers feature precision potentiometric output and high-frequency response for precise synchronization and communication of all columns throughout all operation cycles for precise, level lifting
- Variable height limit settings can be programmed for shops with low ceilings or when specific vehicle service requirements necessitate specific rise heights
- Two-speed lowering option – turtle or rabbit speed settings
- Each column is equipped with a warning light and audible alarm for critical warning alerts
- Emergency shut-off switches on each column quickly shut off power to the lift in the event an unsafe condition is detected by the operator
- Separate key lock enclosure on each column
- Electronics are multi-fuse protected
- An enclosed electric-hydraulic power system that ensures quieter operation is better suited for sound-sensitive areas
- Pallet-jack style steering wheels enable the columns to be lowered firmly on the floor vs. constantly loaded spring-type steering wheels that can cause columns to roll when unladen by the weight of a vehicle
- Low-mounted power units and cylinders means a lower center of gravity, making the columns easier to move and less likely to topple vs. screw-drive systems with heavy overhead motors and drive systems
- Extended forks accommodate wide tires and deep wheel configurations
- Multi-width wheel forks with locking pins accommodate the widest range of wheels, eliminating the need for specialty wheel adapters
- Tandem 8” diameter polyurethane covered steel wheels with sealed roller bearings easily roll over dirt and debris
- Heavy-duty steel carriage rollers feature turned, ground and polished axle pins
- Manual safety override valves on each column permit the lift to be lowered in the event of a power outage without the need for manual hand cranks
- Durable forklift pockets provide simplistic handling when moving the lift columns from one facility to another
- Inverted hydraulic cylinders feature an integrated safety valve to prevent accidental uncontrolled lowering in the event of oil pressure loss
- Multiple, automatic, independent safety locks spaced every four inches ensure safe operation
- Space-saving design, reduced column weight and a tight turning radius provides improved mobility
- Use the lift to place vehicles on tall jack stands then use the columns to raise another vehicle in an adjoining bay
- Durable powder coat finish
BENDPAK NUMBER #5175295
