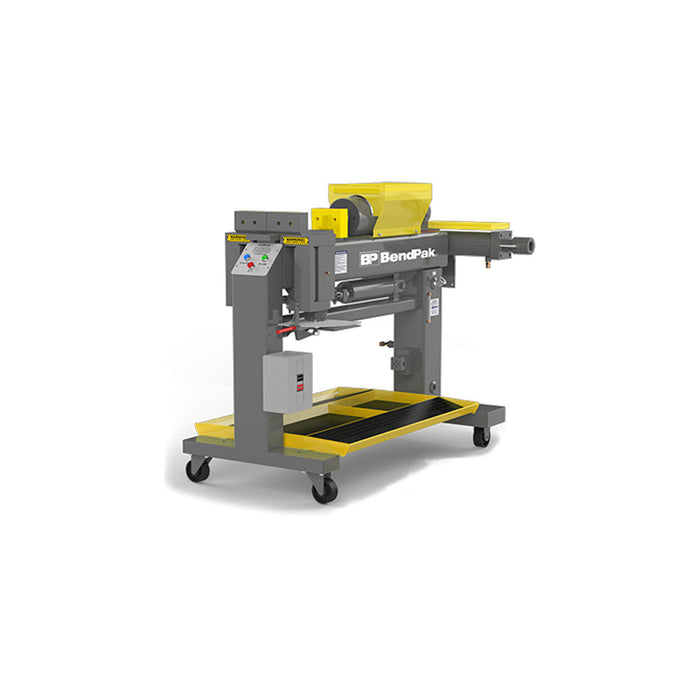

The BendPak 1302BAS series is comprised of powerful automatic exhaust pipes benders designed to expedite the bending process. A convenient, space-saving, side-loading swager, dual-function, end-finishing unit for extremely precise OE expansions and flares.
Quick-change bending dies
With simple, twistable locks and quick-change bending dies, you’ll be cycling through bending projects faster than any of your competitors. Let them try to play catch-up with their cheap imitation pipe benders while you run ahead with the best. You’ll be glad you went with the world leader in pipe bending.
180° bending capacity
The number one request our pipe bender customers have is simply to get the deepest bend possible. We figure a U-shape is pretty darn good. If you need to bend more than 170°, ask about our 180° dies. Our pipe benders perfectly bend on a 5” radius, never permitting pipe sticking or hang-ups. Our unique relief cut design keeps a uniform bend throughout the entire bend cycle and prevents excessive crimping or deformation from costing you money and wasting your precious time.

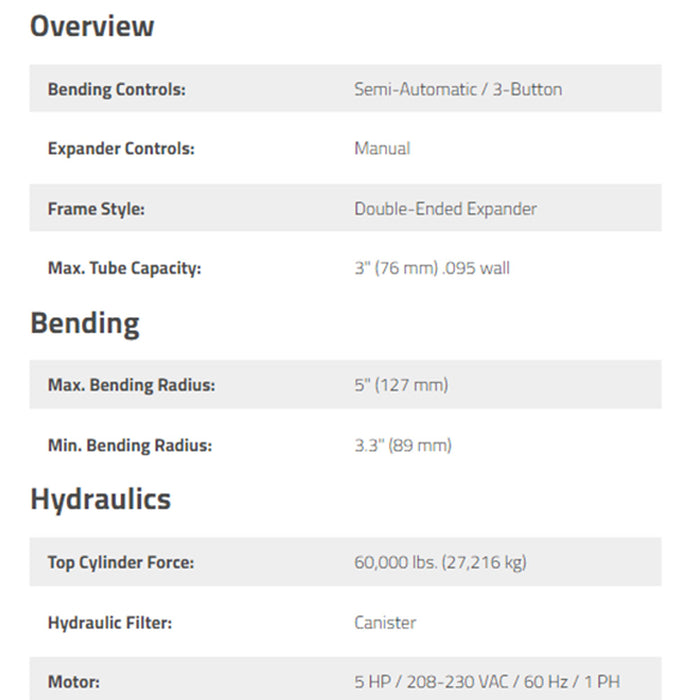

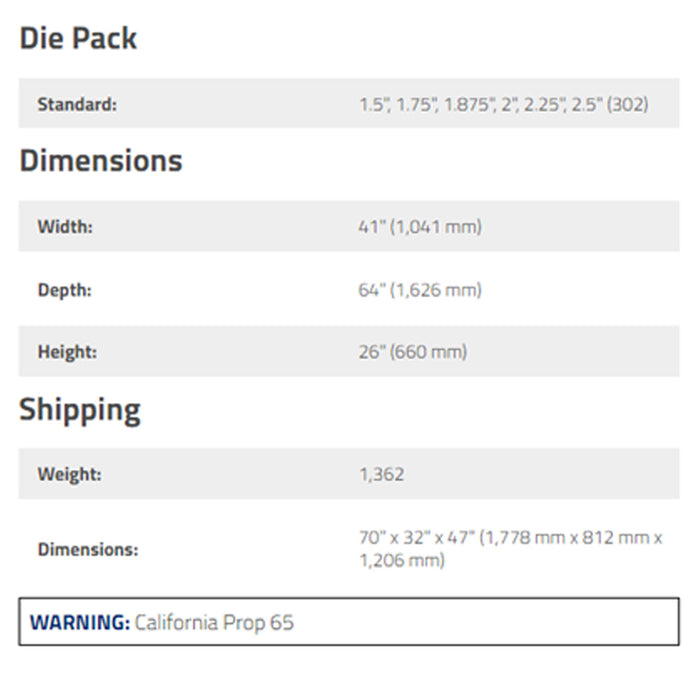

Specification:
- 2 separate end-finishing units at rear for all necessary flaring and expanding
- 3-button control for automatic or manual bending operations
- Comes complete with quick release bending and finishing dies
- Includes high-speed clampless swager and internal expander
- Easy-to-use drop-in collar makes swaging operations quick and efficient
- Twist-lock tooling
- Integrated power-relief control valve
- Pass-through cylinder stem passes completely through the primary frame
- Rigid 6" x 6" x 3/8" welded-steel tube frame
- Commercial-grade hydraulic cylinders
- All cylinders feature chrome-molly shafts, conforming to ANSI 92.2 standards
- Quick-release bending dies for reduced set-up times
- Bending heads precision grounded to within .002"
- Enclosed controls keep your bending area clutter-free
- 2.5" oversized barrel shafts for maximum dependability and minimum maintenance
- Standard grease fittings allow for simple lubrication
- NEMA rated on / off switch box incorporates overload relays that automatically disrupt power supply should an unforeseen over-current situation occur
- Pressure gauges let you know exactly what the system pressures are at all times
- Industrial grade casters help you easily move the bender around your shop
- Remote foot operated controls for added long-distance control
- Adjustable pressure valve located right up front
- One piece barrel ensures that the bending gates stay perfectly aligned with the ram
- Heat-treated tooling for greater service life
- Convenient tool trays keep your tooling organized
- Strong, 5 HP energy efficient motor delivers maximum performance
- Direct-drive, high-speed, 4 gpm pump
- Single enclosed bottom cylinder applies pressure evenly to the back gates and, because it is hidden, does not interfere with the tubing
- Large capacity fluid reservoir keeps the hydraulic oil running cooler and prevents contamination
- Canister oil filter in the hydraulic system keeps the oil nice and clean
- Oil sight-gauges allow you to visually inspect oil levels
BENDPAK NUMBER #5115180
